SURVIVING GUN FILE (# 1219)
Version française

Turkey

7,5/30 sm. Krup seri ateşli sahra top M03 & M09

Light artillery

Contributor :
Anthony Owen
Royal Australian Artillery Historical Company RAAHC      http://artilleryhistory.org/index.html

Lien vers post du blog

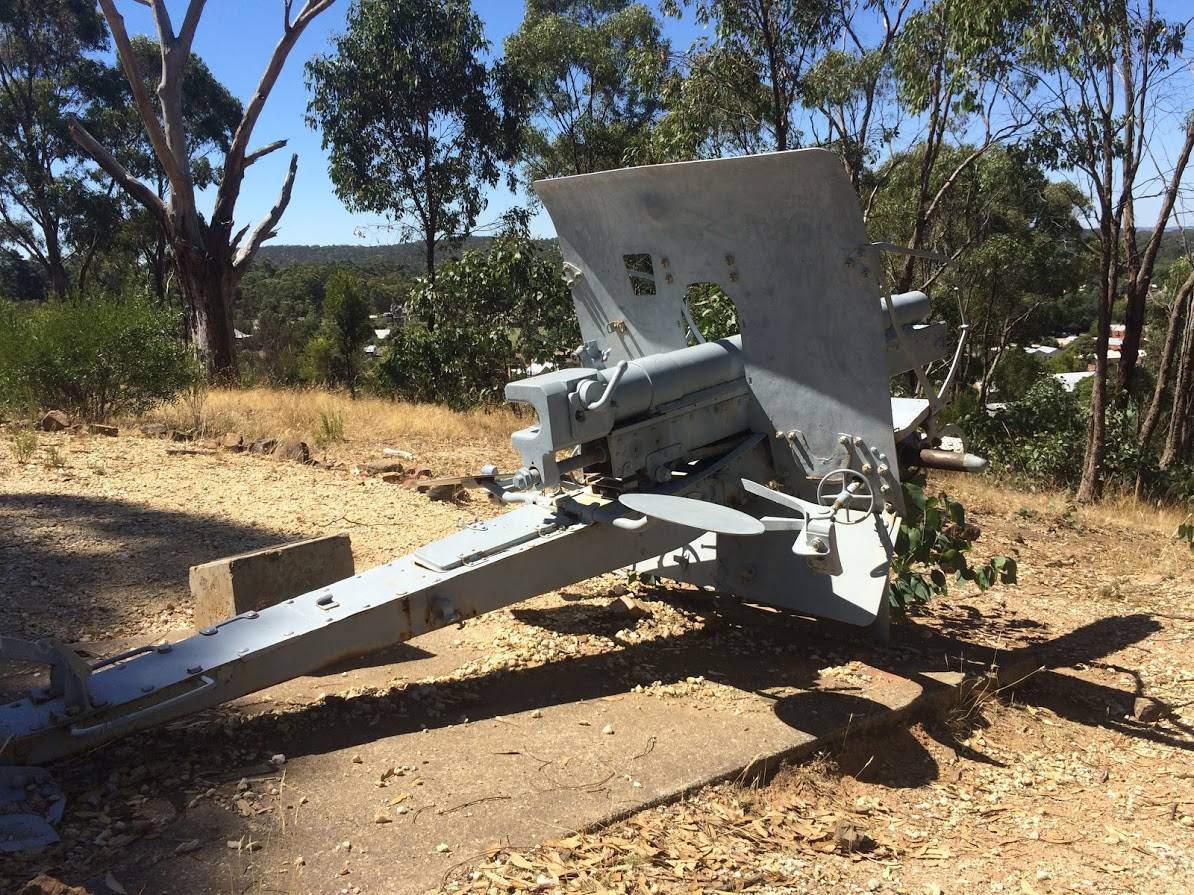

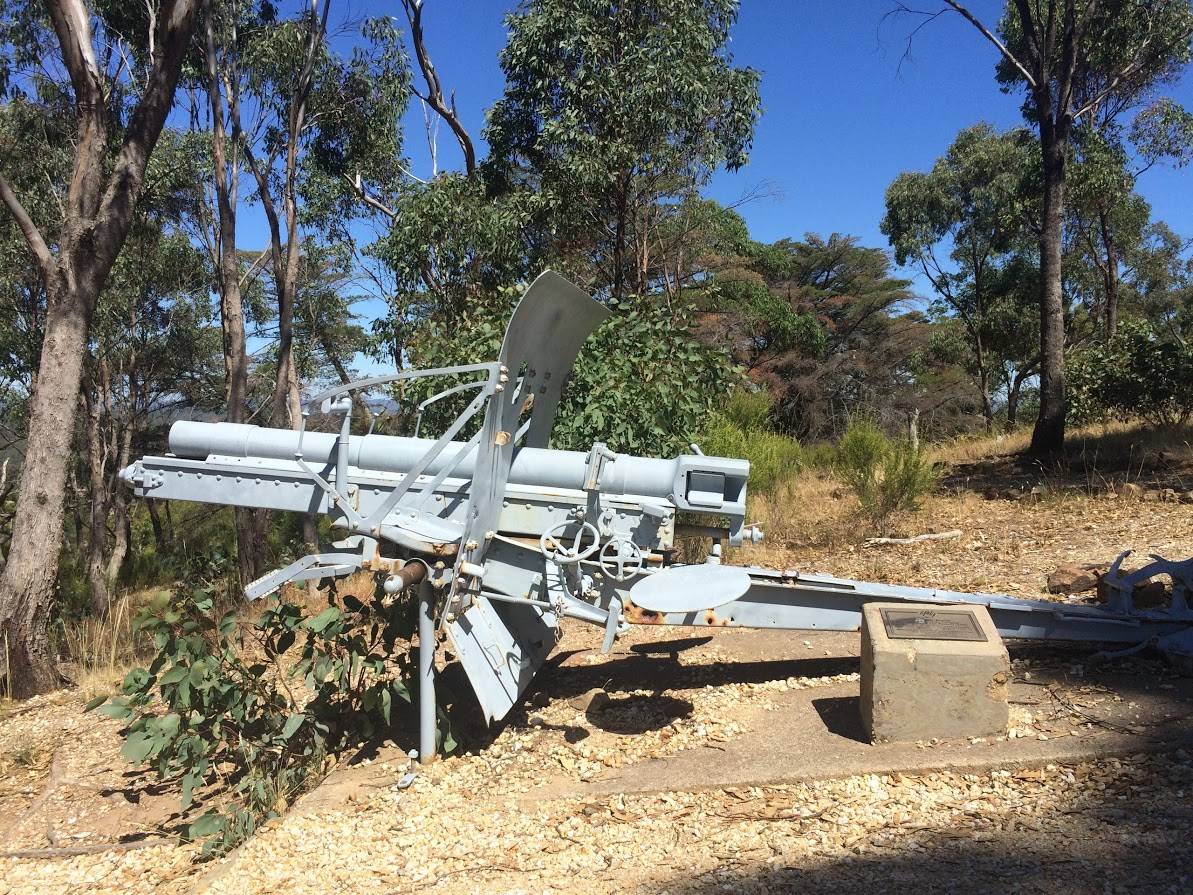

Location :
Australia
Maldon, VIC
RSL
Coordinates : Lat : -36.99601 / Long : 144.06719
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

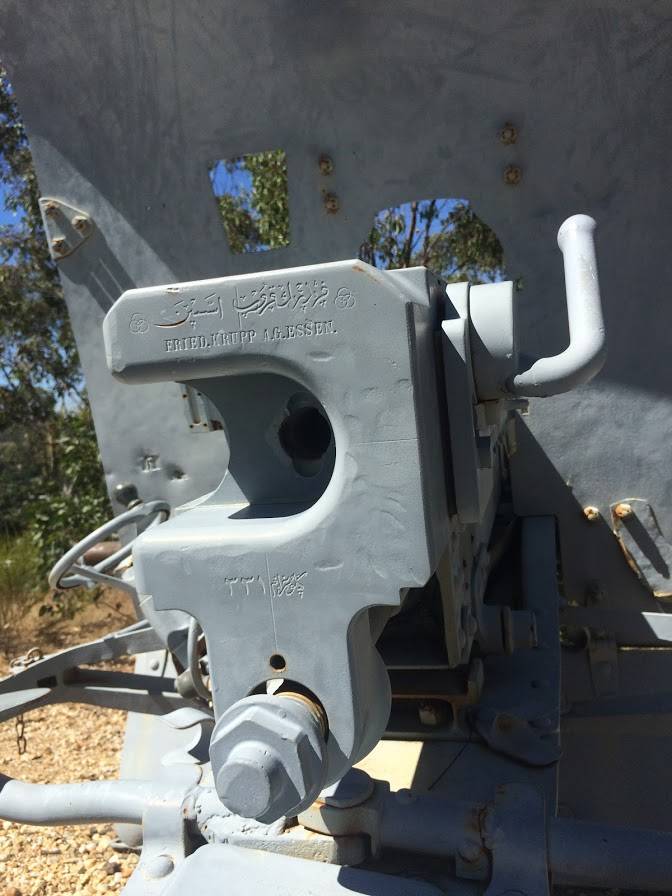

Breech markings 'FRIED KRUPP AG ESSEN'


Historic and technical information
Denomination :     7.5cm FK M03 / M09 Origin :       ( Krupp)             ( Arsenaux Impériaux )

Historic context :

At the beginning of the XXth century, Germany had to react urgently to the arrival of the French revolutionary 75 mm Mle 1897 fieldgun and proceed with a modernizing program for its Krupp 7.7cm FK 96 fieldguns that had become suddenly and prematurely obsolete, transforming them in modern 7.7cm FK 96 n/A by integrating RheinMetall concepts.

The first modernised guns only arrived in the 2nd Reich units in 1905. Surprisingly, Krupp did not wxait so long to integrate these new concepts in its catalogue for export : the foreign customers of the company were proposed a 75 mm quick firing fieldgun equipped with this period new technical standards in 192-1903, therefore long before the German army even own its first equivalent weapons !

Under its generic design, the export 75mm quick firing fieldgun of Krupp was equipped with a 30 calibres long barrel, a sliding block breech, a hydro-spring recoil brake / recuperation system and a protection shield. This base could be adapted to the specifications of the foreign countries with some minor customizing.

Sometimes built in association or under licence by the ordering country industries, these derivated versions equipped numerous nations such as Denmark and Sweden (75mm M02), Switzerland, Netherlands and Rumania (75mm M03), Belgium and Japan (75mm M05), Italy (75mm M06 et M11), Turkey (M03 et M09) but also China and South American nations (Brazil, Argentina). Isarël was using some second hand guns of uncertain origin (captured to Turkey in WW1 by UK, or bought to Switzerland) in the 1950's.

In 1904, Turkey made an order to Krupp for the delivery of a variant of the 75mm M03 in partial manufacturing by the Imperial Arsenals of Istanbul. This initial order was completed in 1905 with an additional one of 462 guns of the same model recognizable by the specific screw-actuated sliding breech. In 1909, a new order was given for 90 guns of a variant of the model u>75mm M09 this time equipped with a conventional quic action sliding block breech. Both models were named with the same 7,5/30 sm. Krup seri ateşli sahra top. This was a good weapon, with performances close to the ones of its German cousin 7.7cm FK96 n/A.

. Turkey lost many of its artillery weapons during the Balkan Wars (1912-1913). Some of these captured 75 mm fieldguns were then used by Bulgaria during WW1. Turkey later used captured Rumanian guns of the same model, and received from Germany some seized Brazilian 75mm fieldguns as well as 7,7 FK 96 n/A and 9cm K73 fieldguns.

Technical data :

  • Complete description : 7.5 cm light fieldgun M 1903 & 1909
  • Design year : 1903 - 1909
  • Calibre : 75.00 mm
  • Weight in firing position : 990 kg (M03) / 1000 kg (M09)
  • Weight for transportation : 1863 kg with limber (M03)
  • Tube length in calibres : 30.00 (27 calibres for the rifled part only)
  • Grooves : 28
  • Projectile weight : shrapnell 6.35 kg - explosif 6 kg
  • Initial speed : 500 m/s
  • Fire rate :
  • Range : shrapnell 5400 m - explosif 5800 m (M03) ou 5900 m (M09) porté plus tard à 8000 m (M03)
  • Elevation range : -5 to +16 degrees
  • Direction range : 7 degrees total range
