SURVIVING GUN FILE (# 1357)
Version française

Austro-Hungaria

7cm Kü.Kn. L/42 M.08 Skoda

Fortress artillery

Contributor :
Massimo (Flickr) Foti


Lien vers post du blog
Location :
Austria
Vienna
Heeresgeschichtliches Museum
Coordinates : Lat : 48.18550 / Long : 16.38860
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

Unknown markings


Historic and technical information
Denomination :     7cm L/42 M 08 Origin :       ( Skoda)

Historic context :

The 7cm (66 mm) calibre was well represented in the Austro-Hungarian Navy with numerous embarked weapons of various barrel lengths. The '7cm L/42 M08' was a variant of the Navy gun '7cm L/42 M98', adapted in a coastal or fortress gun.

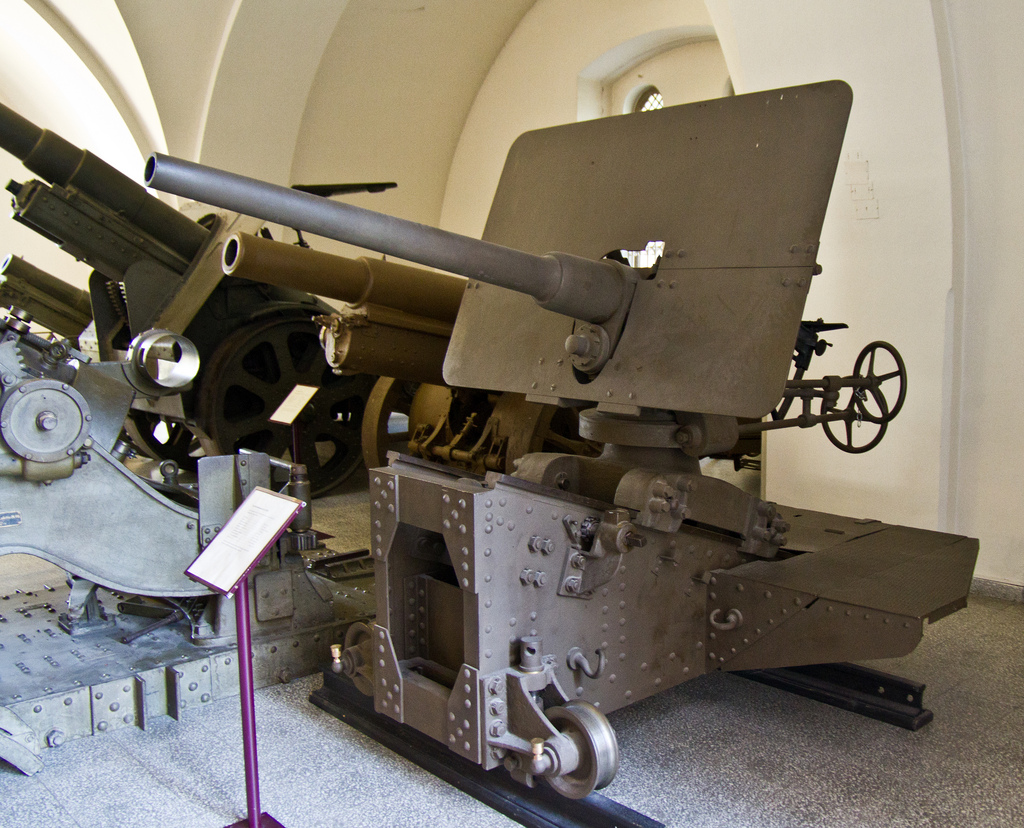

Manufactured by Skoda; this very long barrel gun was equipped with a large shield. It was mounted on a deformation carriage placed on a central pivot, resting on a small wagon sliding on a wedge. This assembly was fixed on a rotating platform. The inclined wedge allowed to hide or show the gun.

Technical data :

  • Complete description : 7cm coastal defence gun L/42 M1908
  • Design year : 1908
  • Calibre : 66.00 mm
  • Weight in firing position : 3140 kg - 520 kg barrel only
  • Weight for transportation :
  • Tube length in calibres : 42.00 (2743 mm)
  • Grooves : 32 progressive angle 4 to 7 degrees
  • Projectile weight : 4 kg
  • Initial speed :
  • Fire rate : 12 rounds / min
  • Range : 6000 m
  • Elevation range : -10 to +15 degrees
  • Direction range : 360 degrees range
