SURVIVING GUN FILE (# 1404)
Version française

Austro-Hungaria

15cm M 80 schwere Feld Haubitze

Heavy artillery

Contributor :
Bernard Plumier      http://www.passioncompassion1418.com


Lien vers post du blog
Location :
Italy
Rovereto
Museo Storico Italiano della Guerra
Coordinates : Lat : 45.88890 / Long : 11.04840
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

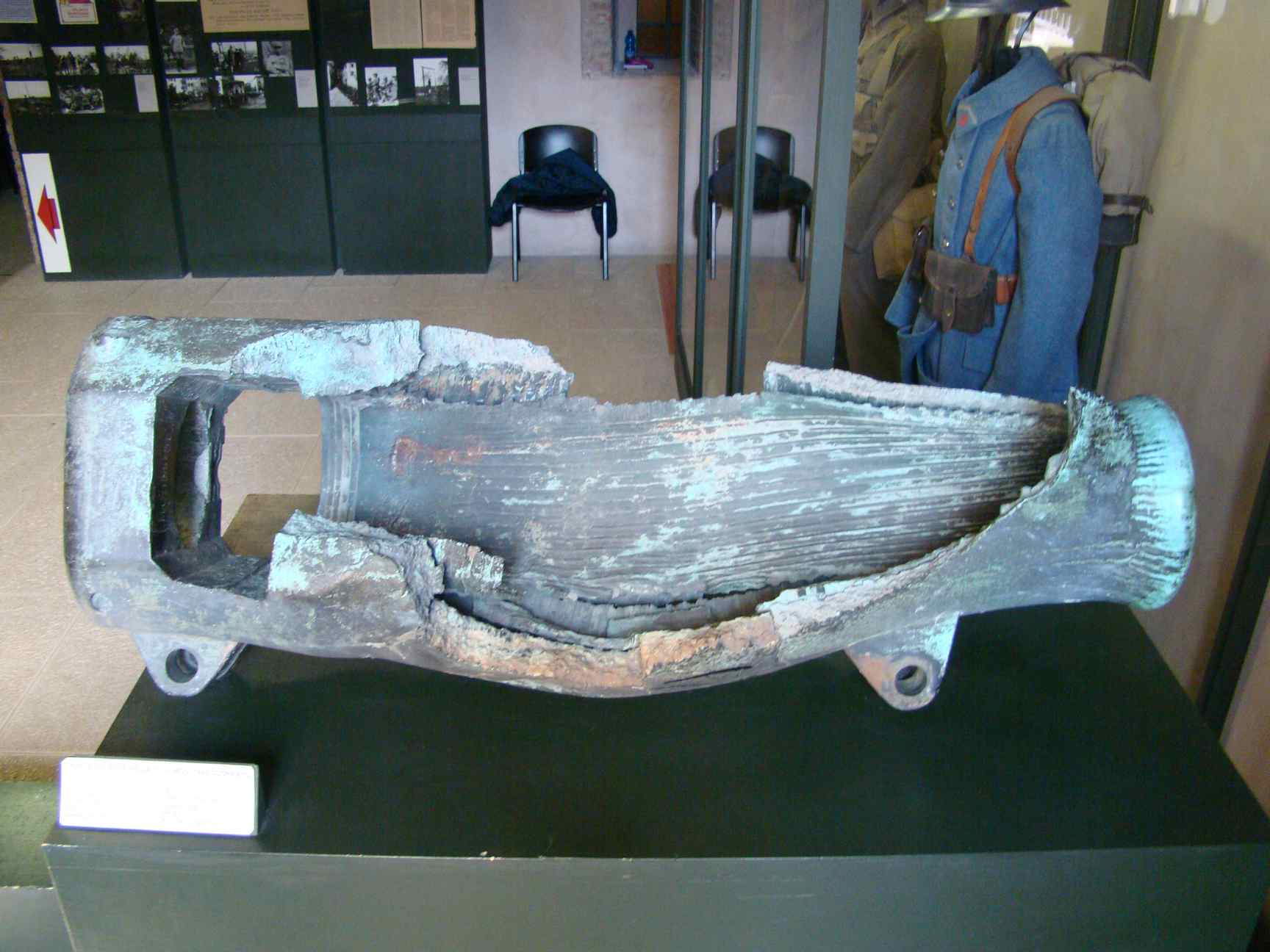

It is easy to imagine the violence of the explosion that destroyed that barrel and probably killed its servants

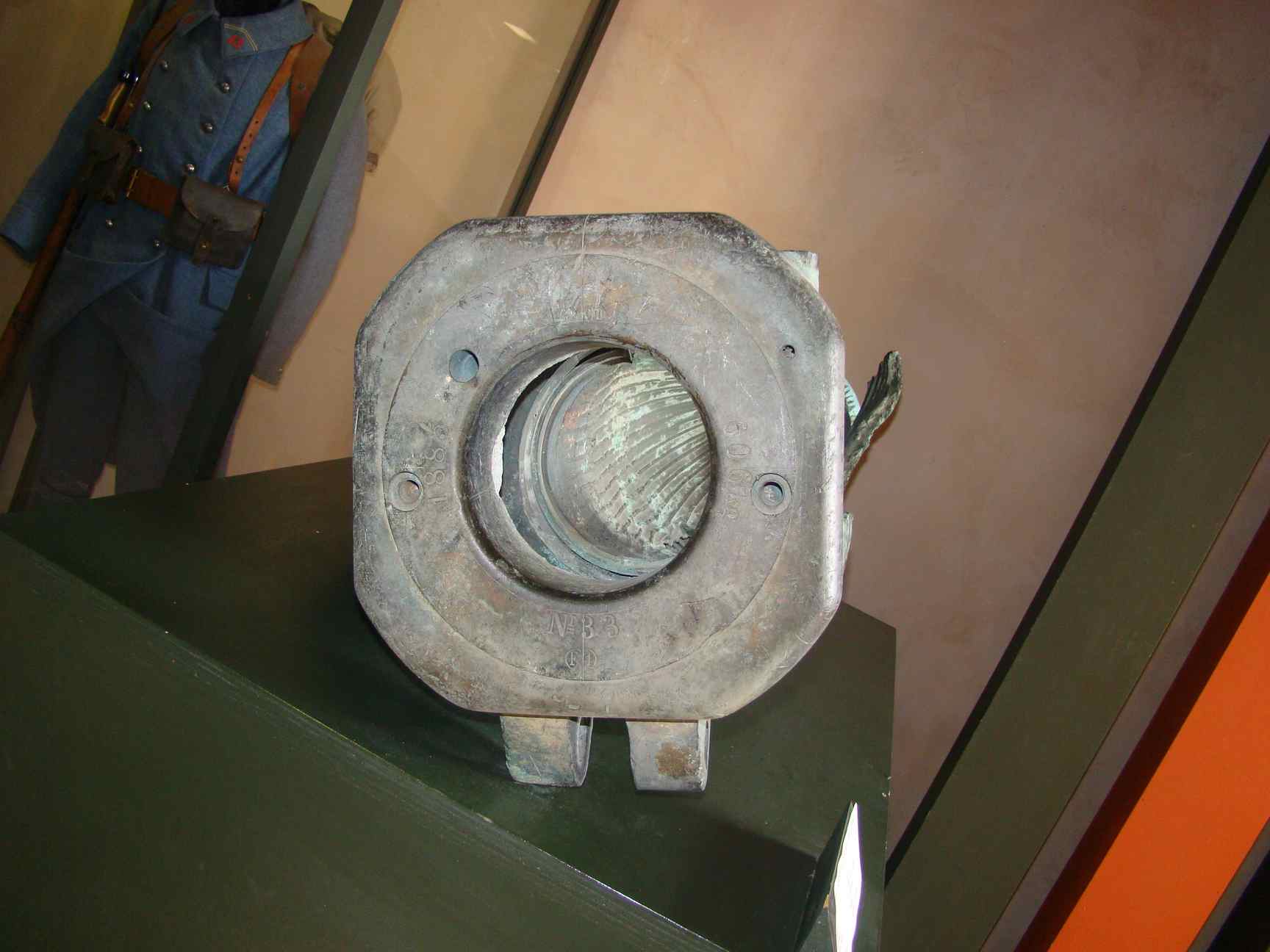

Breech markings : '15cm B - 1885 - 606 kg - Nr 33 - F1'


Historic and technical information
Denomination :     15cm M 80 sFH Origin :       ( Arsenaux d'état)

Historic context :

This Austro-Hungarian weapon was part of a mortars system of the same 1880 year, including 9, 15 and 21cm calibres, initially designed for siege operations on non-wheeled carriage. The short 15cm bronze barrel, equipped with a sliding wedge breech block and that was heped with an hydraulic wedge when firing on its siege carriage at low angles, was also adapted on a mobile wheeled carriage to make a heavy field mortar, the '15cm M80 FH'.

This obsolete weapon, with mean performances (including a poor range) was replaced by the M 94 15cm, and later by the more modern M 14 15cm. It was nevertheless probably used in WW1 in operations with reserve trrops or for training.

Technical data :

  • Complete description : 15 cm heavy field howitzer M 1880
  • Design year : 1880
  • Calibre : 149.00 mm
  • Weight in firing position : unknown
  • Weight for transportation :
  • Tube length in calibres : 8.00 calibres (1200 mm)
  • Grooves : 36
  • Projectile weight : 31.6 kg / 36.9 kg
  • Initial speed : unknown
  • Fire rate :
  • Range : 3500 m
  • Elevation range : 65 degrees max
  • Direction range :
