SURVIVING GUN FILE (# 328)
Version française

Russia

3 in (76.2 mm) Pushka Obr. 1900 Putilov

Light artillery

Contributor :
(Wikimedia commons) Balcer      http://commons.wikimedia.org/


Lien vers post du blog
Location :
Finland
Hameenlinna
Finnish Artillery Museum
Coordinates : Lat : 61.00600 / Long : 24.45930
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

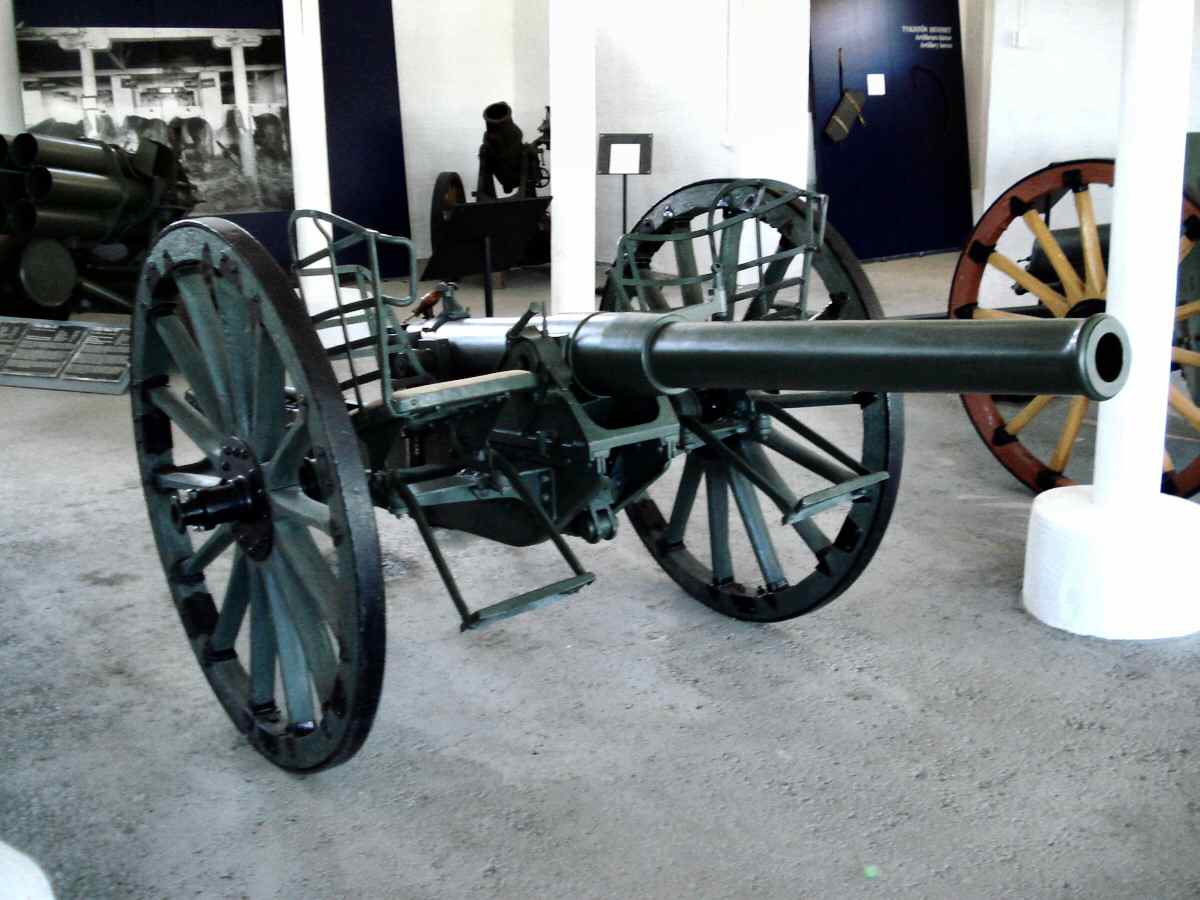

Front view

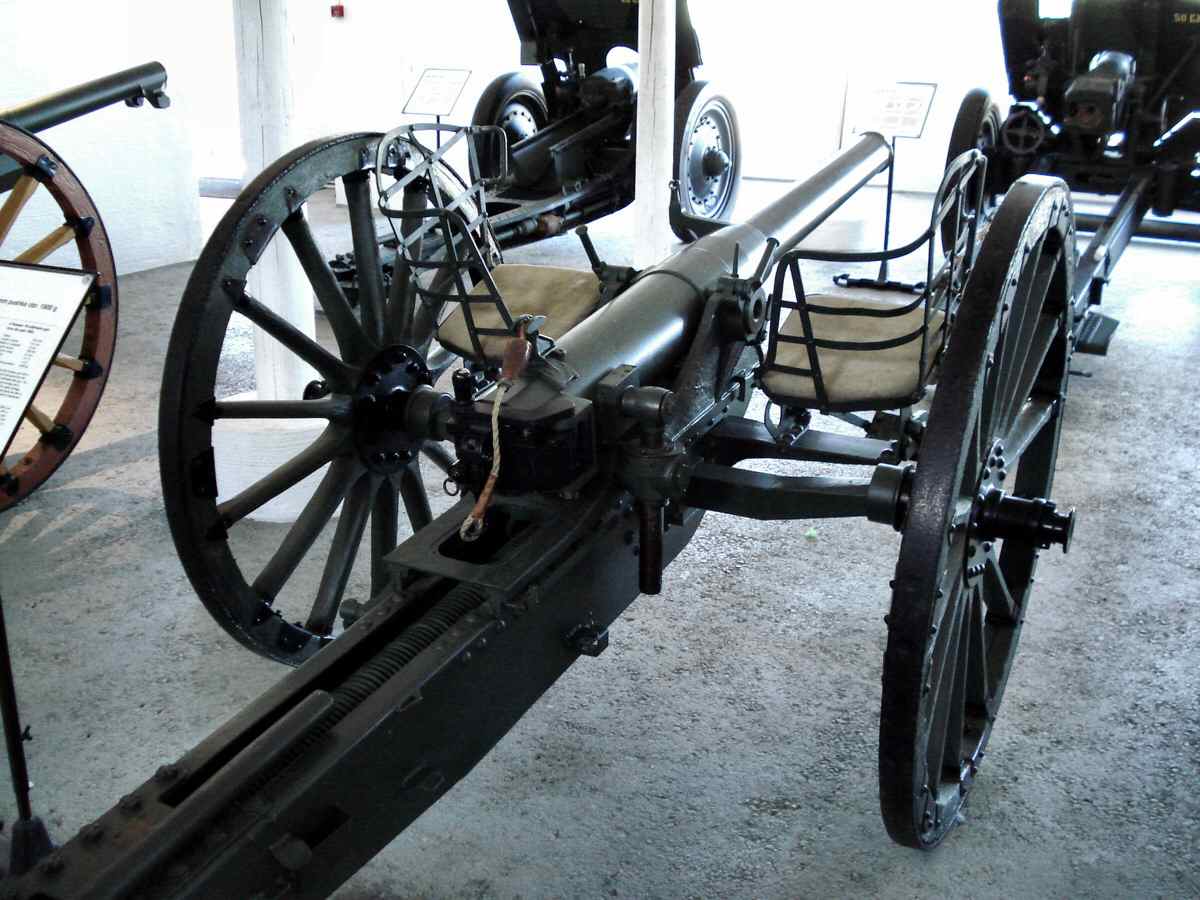

Rear view. The recuperating piston circled with rubber rings is visible in the tail


Historic and technical information
Denomination :     76.2mm M1900 Origin :       ( Putilov)

Historic context :

In 1900, one of the two Russian guns manufacturers delivered the '76.2 mm fieldgun M1900'. This was the first Russian gun to be equipped with a recoil recuperation system, but this one was rather special : the barrel was linked to a sliding beam that could move on the tail. An hydraulic brake strengthened by rubber rings (Engelhardt process) was placed inside the tail.

This gun also had a quick action breech similar to the Schneider famous ones, and later received a shield during the Russia - Japan war to which it took part.

This gun performances had nothing enthusiasming, so that it was replaced 2 years after its birth by the much better 76.2 mm Mle 1902 designed in collaboration with the Etablissements Schneider in Le Creusot (France). Anyhow, the model 1900 firldguns stayed in stock in several reserve units, and were massively mobilized in 1914.

Technical data :

  • Complete description : 76.2 mm fieldgun Putilov M 1900
  • Design year : 1900
  • Calibre : 76.20 mm
  • Weight in firing position : 1020 kg (without shield)
  • Weight for transportation :
  • Tube length in calibres : 30.00
  • Grooves : 0
  • Projectile weight : 6.5 kg
  • Initial speed : 588 m/s
  • Fire rate :
  • Range : 6400 m
  • Elevation range : -6.5 to +16.75 degrees
  • Direction range : 4 degrees range
