SURVIVING GUN FILE (# 677)
Version française

Germany

7.5cm GebirgsKanone L/17 M08

Mountain artillery

Contributor :
Gilles Roland      http://vestiges.1914.1918.free.fr/


Lien vers post du blog
Location :
United Kingdom
London
Imperial War Museum
Coordinates : Lat : 51.49590 / Long : -0.10882
General comments on this surviving gun :


Identical items in the same location : 1
Items covered by this file : 1

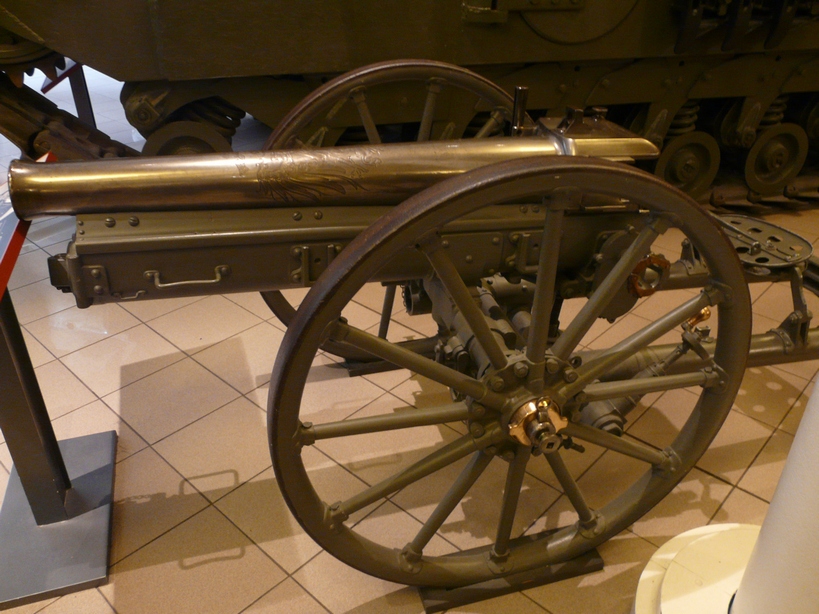

Captured in South West Africa by the South African and Rhodesian troops in July 1915


Historic and technical information
Denomination :     7.5cm GebK L/17 M08 Origin :       ( RheinMetall)

Historic context :

Designed by RheinMetall in 1908 as a first attempt to reach the German mountain guns market that used to be a monopole of Krupp until then, the '7.5cm GebirgsKanone L/17 M08' was a light weapon that could be disassembled into 5 separated loads for the transportation on animals.

Only 12 of these guns were built, and the three batteries equiped with them were sent to the German colonies in Africa.

RheinMetall used the experience gained during this weapon design to realise other light mountain guns and howitzers afterwards.

Technical data :

  • Complete description : 7.5cm L/17 M08 mountain gun
  • Design year : 1908
  • Calibre : 75.00 mm
  • Weight in firing position : 529 kg
  • Weight for transportation : same, in 5 separated loads
  • Tube length in calibres : 17.00
  • Grooves : 0
  • Projectile weight : 5.3 kg
  • Initial speed : 300 m/s
  • Fire rate :
  • Range : 5750 m
  • Elevation range : -7 to +38.5 degrees
  • Direction range : 5 degrees total range


Sources
  • German Artillery of World War One           Herbert Jager                   Crowood   2001
  • Wikipedia http://fr.wikipedia.org/
